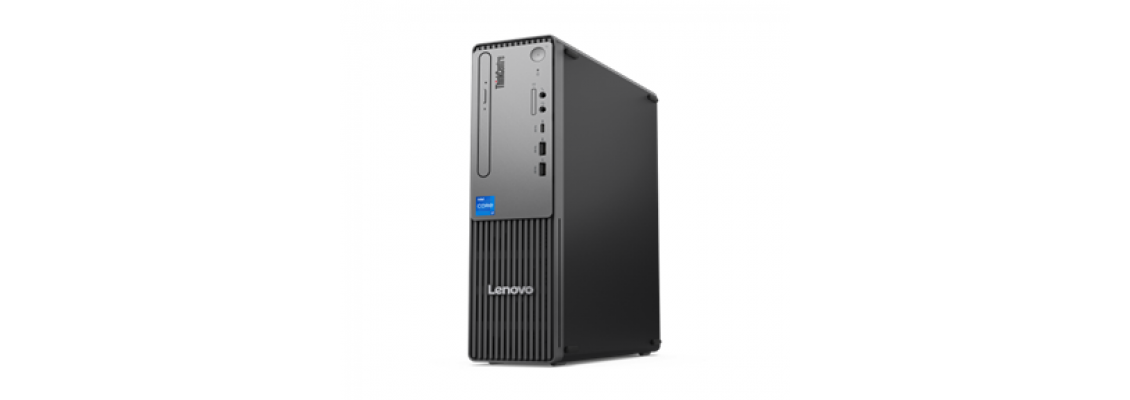

To have details view for Lenovo Desktop ThinkCentre neo 50s Gen 5 i7-14700 16GB 512GB SSD 12XD002PME
| PERFORMANCE | |
| Processor | Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB |
| Graphics | Integrated Intel UHD Graphics 770 |
| Chipset | Intel B760 Chipset |
| Memory | 1x 16GB UDIMM DDR5-5600 |
| Memory Slots | Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Card Reader | 3-in-1 Card Reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek ALC623-CG codec |
| Speakers | None |
| Power Supply | 260W 90% |
| DESIGN | |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | • One PCIe 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm • One PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm • Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Chassis: Black, Bezel: Grey |
| Stand | None |
| Form Factor | SFF (8.2L) |
| Dimensions (WxDxH) | 92.5 x 291.4 x 339.5 mm (3.6 x 11.5 x 13.4 inches) |
| Weight | Around 4.2 kg (9.3 lbs) |
| CONNECTIVITY | |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3 |
| Front Ports | • 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm) • 1x microphone (3.5mm) |
| Rear Ports | • 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On • 1x HDMI 2.1 TMDS • 1x DisplayPort 1.4 • 1x VGA • 1x Ethernet (RJ-45) • 1x line-out (3.5mm) |
| Optional Rear Ports | None |
| Monitor Cable | None |
| SECURITY & PRIVACY | |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington Security Slot, 3 x 7 mm |
| Smart Cable Clip | None |
| Chassis Intrusion Switch | Chassis Intrusion Switch |
| SERVICE | |
| Base Warranty | 1-year, Courier or Carry-in |
| Included Upgrade | 3Y Premier Support Upgrade from 1Y Courier/Carry-in |
| CERTIFICATIONS | |
| Green Certifications | • RoHS / WEEE / REACH • TCO Certified 9.0 |
| SOFTWARE | |
| Operating System | Windows 11 Pro, English |
| Bundled Software | Blancco File Eraser Enterprise 1-year |
| ACCESSORIES | |
| Bundled Accessories | None |
| EAN / UPC / JAN | 198154864620 |
| Recommended Accessory | |
| Name | Lenovo Professional Bluetooth Rechargeable Mouse |
| Part# | 4Y51J62544 |
| Specification summary | 4571591872285 / 0195892054498 / 195892054498 |
| Remarks | Recommended |
