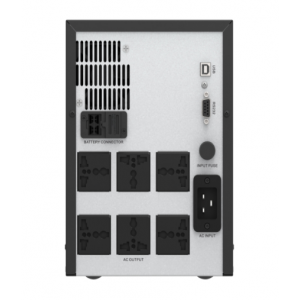

APC Easy UPS SMV 3000VA Universal Outlet 230V ( SMV3000AI-MS )
- Stock: 1
- Model: SMV3000AI-MS
- Weight: 29.00kg
- Dimensions: 42.05cm x 33.60cm x 61.10cm
- SKU: SMV3000AI-MS
- MPN: SMV3000AI-MS
Products Sold: 0
Product Views: 916
MYR3,996.00
Ex Tax: MYR3,996.00
- Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
- Includes: Documentation CD, USB cable, User manual
Key Features
Output power capacity : 2.1kWatts / 3.0kVA
Output Connections : (6) Universal receptacle (Battery Backup)
Nominal Output Voltage : 230V
Nominal Input Voltage : 230V
Input Connections : IEC 60320 C20
Automatic Voltage Regulation (AVR) : Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Cold-start capable : Provides temporary battery power when the utility power is out.
LCD graphics display : Text and mimic diagrams that display modes of operation, system parameters and alarms.
Pure sine wave output on battery : Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Easy UPS Features & Benefits
Protection
Battery backup and surge protection : Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets : Back up and protect your hardware and data during power outages, surges and spikes.
Manageability
LED Indicators : Provide easy-to-read status of the unit and utility power conditions.
LED Indicators : Provide easy-to-read status of the unit and utility power conditions.
Audible alarms : Provides notification of changing utility power and UPS power conditions
Safety
Safety-agency approved : Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Features
Boost Automatic Voltage Regulation (AVR) : Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets : Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design : Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Cold-start capable : Provides temporary battery power when the utility power is out.
Availability
Intelligent battery management : Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery failure notification : Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features : Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Technical Specifications
Output
Max Configurable Power (Watts) : 2.1kWatts / 3.0kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Unsynchronised
Load Crest Factor : 3 : 1
Topology : Line interactive
Waveform type : Sine wave
Transfer Time : 2-6 ms typical : 12 ms maximum
Input
Input frequency : 45 - 65 Hz +/- 1 Hz Auto-sensing
Input voltage range for main operations : 165 - 295V
Number of Power Cords : 1
Other Input Voltages : 220 V, 240 V
Batteries & Runtime
Battery type : Lead-acid battery
Typical recharge time : 4hour(s)
Nominal Battery Voltage : 48 V
Expected Battery Life (years) : 3 - 5
Battery Charge Power (Watts) : 99 Watts
Battery Volt-Amp-Hour Capacity : 432
Runtime : View Runtime Graph
Efficiency : View Efficiency Graph
Communications & Management
Interface Port(s) : USB
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 125Joules
Physical
Maximum Height : 240MM, 24.0CM
Maximum Width : 180MM, 18.0CM
Maximum Depth : 455MM, 45.5CM
Net Weight : 25.2KG
Color : Black
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -10 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15000meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Protection Class : IP20
Conformance
Approvals : CE, EN/IEC 62040-1, EN/IEC 62040-2
Standard warranty : 2 years repair or replace
