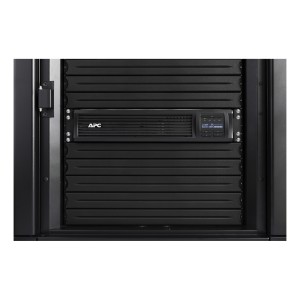

APC Smart-UPS Line Interactive 1500VA Rackmount 2U 120V SMT1500RM2UC apc SMT1500RM2UC

Specifications:

Main

• Product or Component Type: Uninterruptible power supply (UPS)

• Communication port type: SmartConnect Ethernet port, SmartSlot, USB. Serial

• Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use

• Mounting mode: Rack-mounted with included kit

• UPS connectivity: Serial port, USB port, SmartConnect port

• Battery Size: Lead-acid internal included

Batteries & Runtime

• Battery Type: Lead-Acid battery

• Extendable Run Time: 0

• Included Battery Modules: 0

• Battery Slots Empty: 0

• Typical recharge time: 3 h

• RBC Quantity: 1

• Battery life: 4…6 year(s)

• Replacement battery: APCRBC159

• Battery Charge Power (Watts): 144 W rated

General

• Provided equipment: Installation guide, Rack Mounting support rails, USB cable

• Number of power module: 0

• Number of power module filled slots: 0

• Number of power module free slots: 0

• product web sub-family: Cloud-enabled monitoring

• Redundant: No

Physical

• Number of rack unit: 2U

• Cable length: 8 ft (2.4 m)

• Number of cables: 1

• Color: Black

• Height: 3.4 in (86 mm)

• Width: 17.008 in (432 mm)

• Depth: 18.8 in (477 mm)

• Net Weight: 58.4 lb(US) (26.5 kg)

• Mounting Location: Front

• Mounting preference: Lower

• Mounting Mode: Rack-mounted

• Two post mountable: 0

• USB compatible: Yes

Input

• Main Input Voltage: 120 V AC 1 phase

• Other Input Voltage: 110 V, 125 V

• Input Connection Type: NEMA 5-15P

• Efficiency at full load: 75...154 V adjustable, 82...144 V

• Input Frequency: 50/60 Hz +/- 3 Hz auto-sensing

Output

• Main Output Voltage: 120 V AC 1 phase

• Other Output Voltage: 110 V, 125 V

• Kw Rating: 1000 W

• Rated power in VA: 1440 VA

• output connection type: 6 NEMA 5-15R

• Harmonic distortion: Less than 5%

• Maximum configurable power in VA: 1440 VA

• Max Configurable Power (Watts): 1000 W

• Transfer Time: 6ms typical : 10ms maximum

• Topology: Line Interactive

• Waveform Type: Sine wave

• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Communications & Management

• Control panel: Multi-function LCD status and control console

• Free slots: 1

• Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

• Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rating: 680 J

• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

Packing Units

• Unit Type of Package 1: PCE

• Nbr. of units in pkg.: 1

• Package 1 Height: 9.3 in (23.5 cm)

• Package 1 Width: 24.02 in (61 cm)

• Package 1 Length: 23.2 in (59 cm)

• Package weight(Lbs): 70.81 lb(US) (32.12 kg)
