APC Dry Contact I/O Accessory ( AP9810 )
  • Stock: 1
  • Model: AP9810
  • Weight: 0.50kg
  • Dimensions: 4.30cm x 26.40cm x 13.70cm
  • SKU: AP9810
  • MPN: AP9810
Products Sold: 0
Product Views: 272
MYR745.00
Ex Tax: MYR745.00
  • UPS management accessory that provides two dry contact input and one relay output interface to APC UPS management offers with UIO ports such as the UPS Network Management ...
  • Includes: Cat 5 Ethernet cable, User manual


AP9810 Features

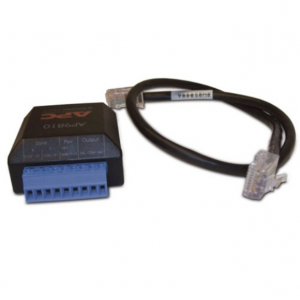

APC Dry Contact I/O Accessory
UPS management accessory that provides two dry contact input and one relay output interface to APC UPS management offers with UIO ports such as the UPS Network Management Card (AP9631) or Dry Contact I/O SmartSlot Card (AP9613).
Includes: Cat 5 Ethernet cable, User manual

Customizable Input Contacts : Monitor conditions from external devices.
Customizable Output Relays : Control output from external devices via output relay(s).


UPS Network Management Cards Features & Benefits

Total cost of Ownership
Flash upgradeable firmware : Install maintenance releases of firmware remotely using FTP.
Browser Accessible : View the user interface with a browser. Provides quick access from anywhere on a secure network.

Manageability
Notification : Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Enterprise management system compatible : Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB
Integrates with StruxureWare Data Center Expert : An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Data logging :Identify problematic trends before they escalate or export the data log for analysis.
Scheduled shutdown and reboot : Customize shut down and reboot of connected equipment and UPSs.
Event logging : Pinpoint the timing and sequence of events leading up to an incident with the event log.

Protection
Radius support : Use an existing radius server to securely authenticate, authorize, and account for your APC device.
Multi-tier user access : Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.
Password Security : User-selectable password with strong password rules and reset password mechanism.
Network Shutdown : Reliable network-based shutdown of multiple servers

Availability
Reboot equipment remotely : Saves dispatching technicians to remote locations.

Marketing features
Remote device management : Enable management of your UPS by connecting it directly to the network.
Fault notification : Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.


Technical Specifications

Physical
Maximum Height : 22MM, 2.2CM
Maximum Width : 45MM, 4.52CM
Maximum Depth : 45MM, 4.46CM
Net Weight : 0.05KG
Color : Black

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 1015.9meters
Storage Temperature : -15 - 65 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0 - 4572meters

Conformance
Approvals : EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
